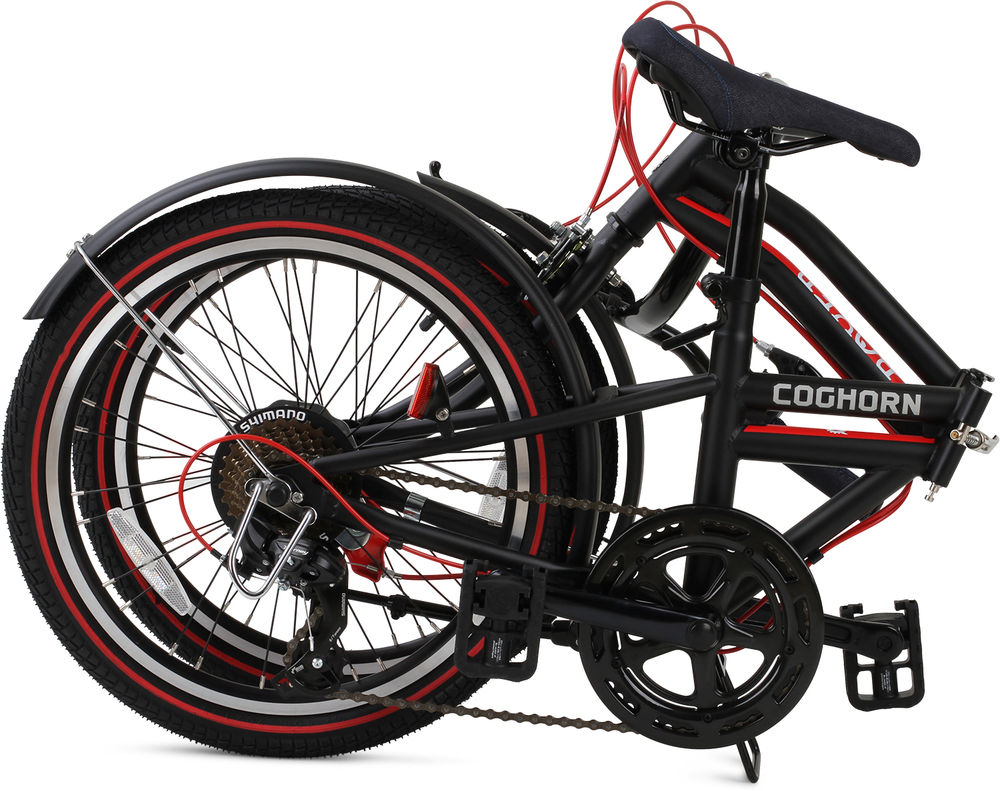

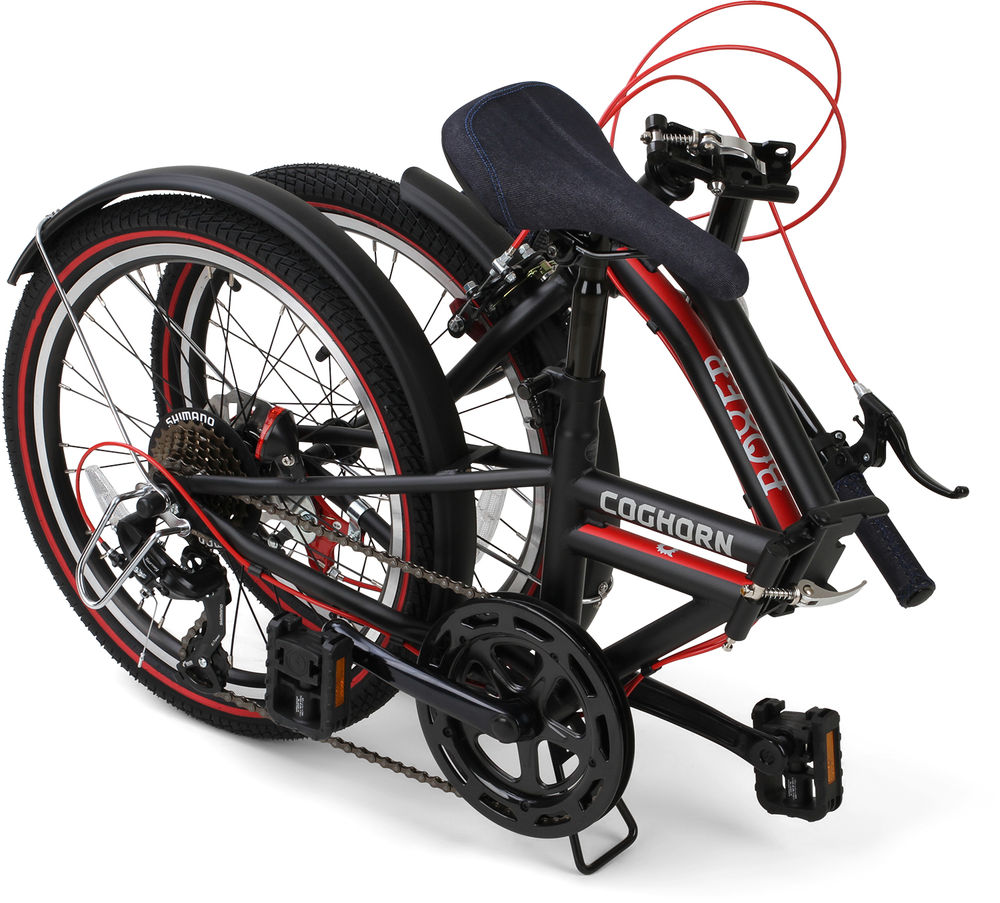

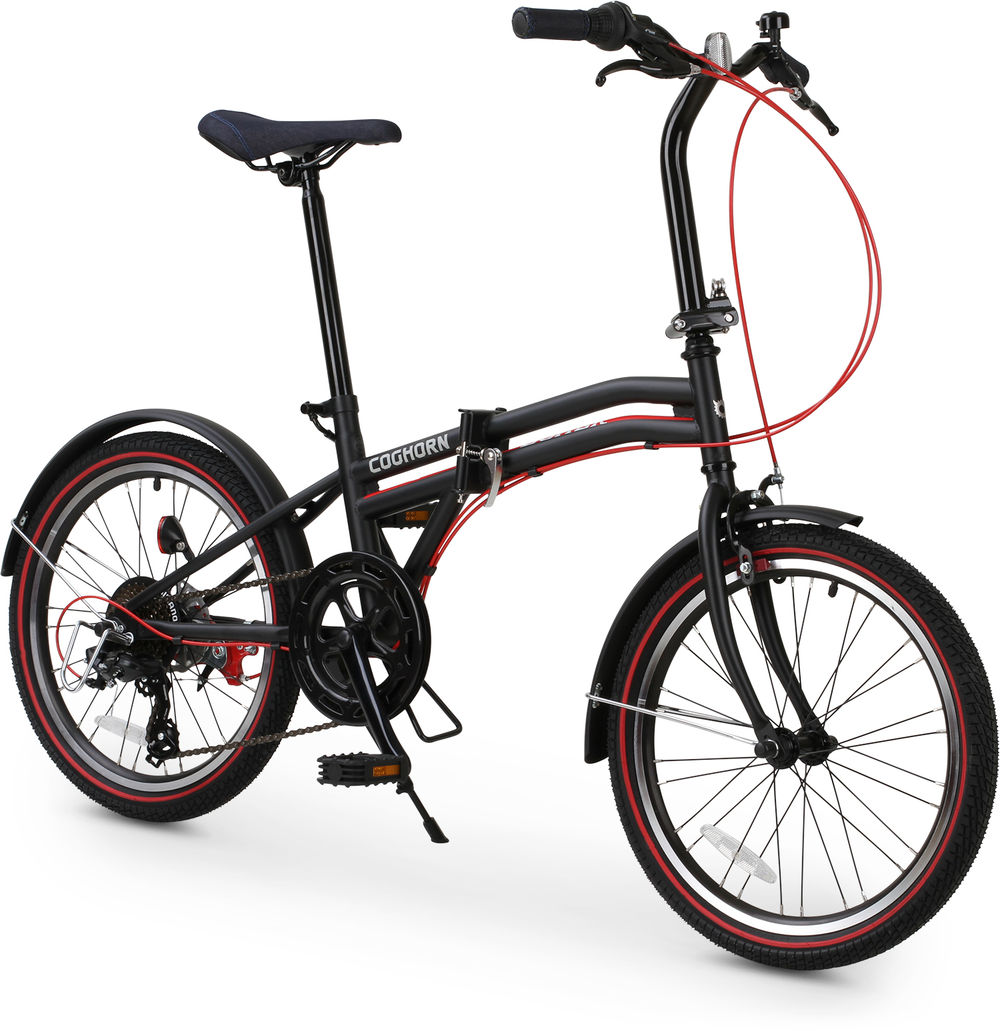

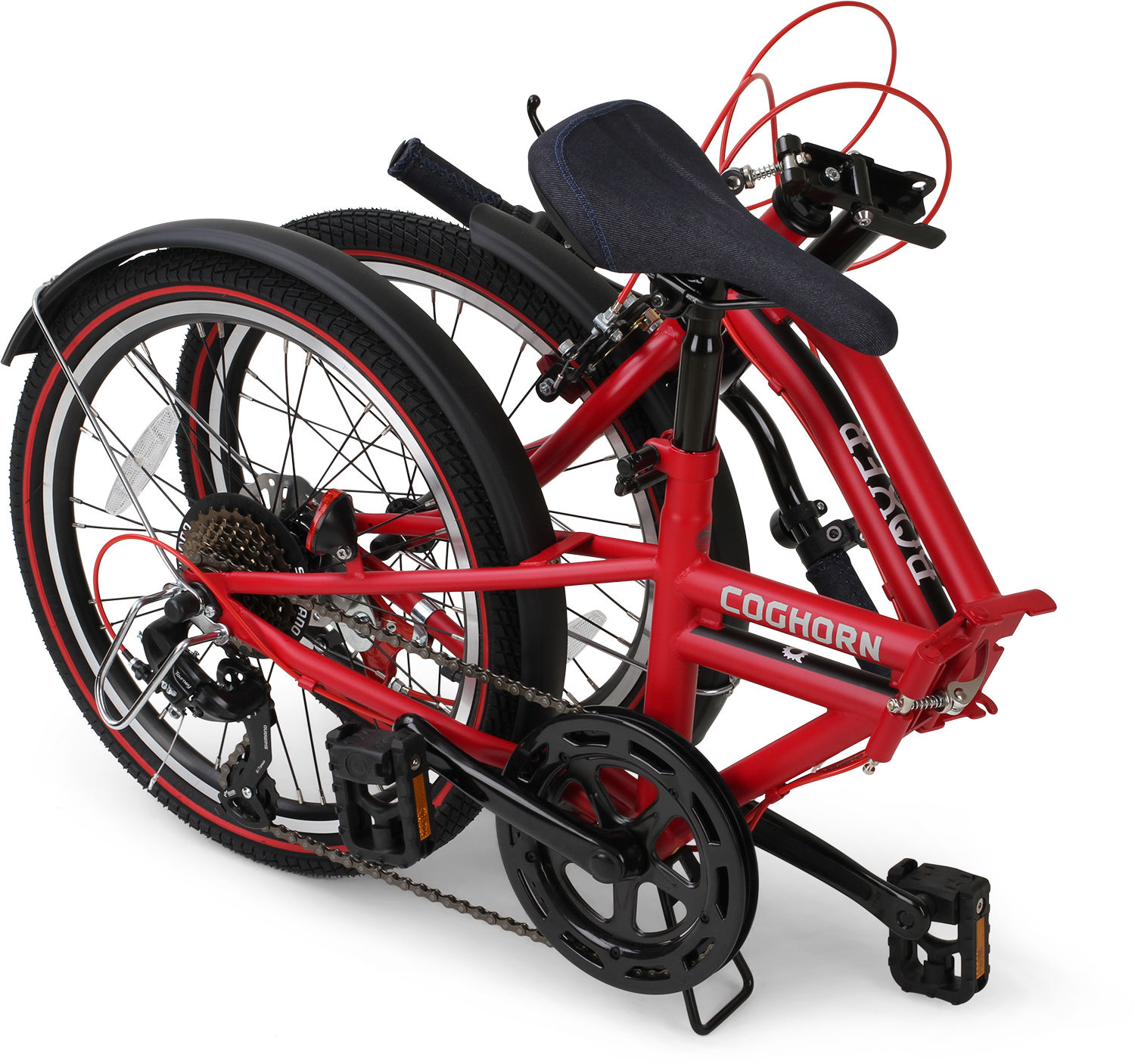

3! 2! 1! Knockout! The BOXER features a compact folding frame with ultra-convenient quick releases, perfect for packing down for any bike adventure. Our folding handlebar is stiff and goofproof, providing a dignified, upright ride.

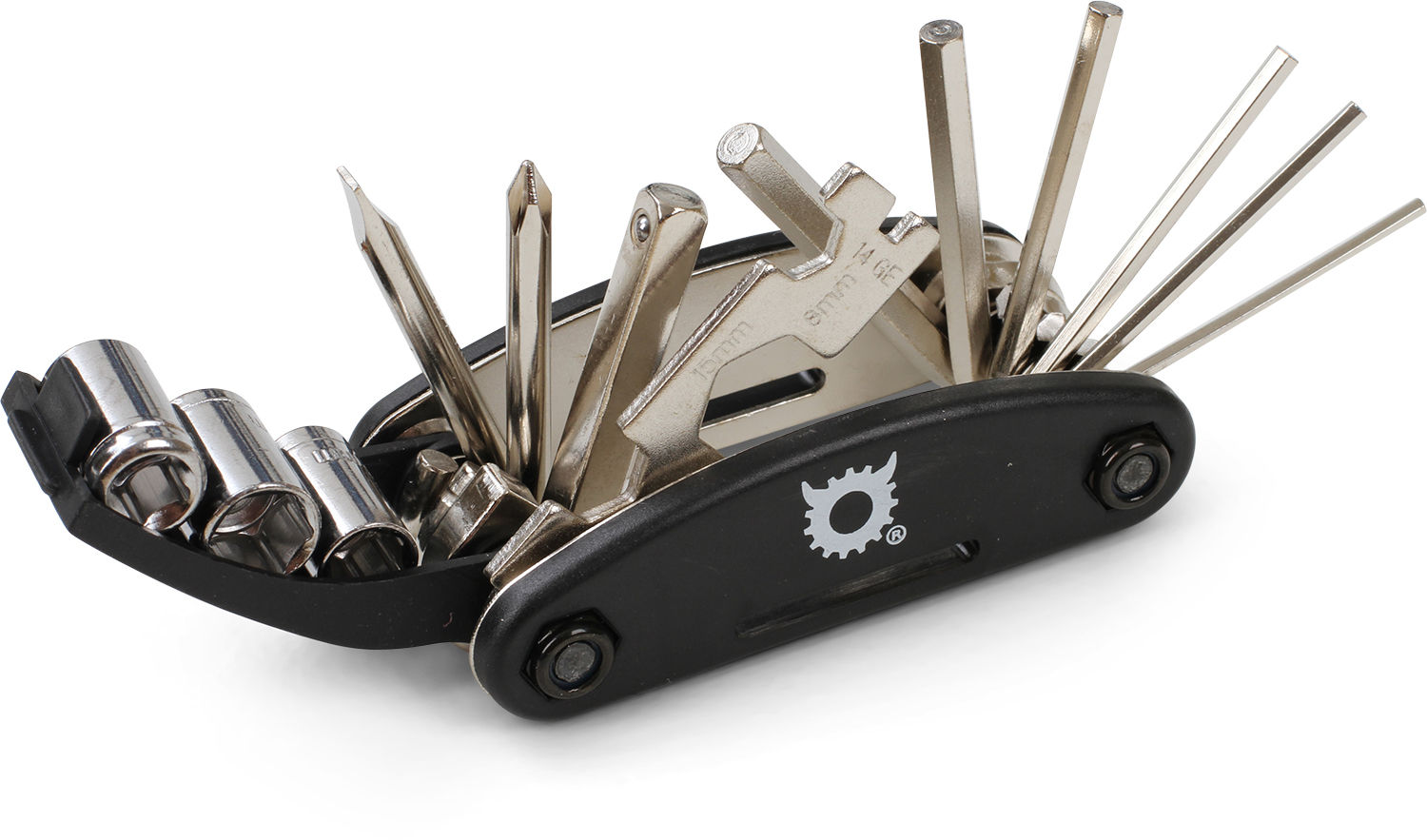

All COGHORN® folding bikes are shipped ready to ride, tuned up for your instant satisfaction. Your cogs, cables, noodles, doodles and ferrules are delivered ship shape, prepared by our team of bike nerds. And for your inner-nerd: all COGHORN® bikes include our Do-it-Y’All Multi-Tool, a 16-tool-in-1 wonder that will impress your friends -- totally FREE.
If you don’t mind a little debonair flair with your fold, all COGHORN® bikes include our Dungaree Stitch Saddle and Grips. Overall, our bikes are the product of decades of design experience and bike insight in an effort to offer charming and sophisticated rides with exceptional value.
We’ve sharpened our horns to make sure we’ve included exceptional features for your BOXER including a full-coverage fender set, color tire sidewalls, and many more deluxe details and components.
By the numbers! 6-speed Shimano® Drivetrain, 20-in Wheels with Kenda® 20 x 1.75 in tires, Front and Rear Lever Operated Brakes with Jagwire® cables, Adjustable for riders 5’ to 6’+ and up to 220lbs.
| Frame | 20" steel folding frame with quick release clamps. |
| Folding | No tools required. |
| Assembly | Delivered fully assembled and ready to ride. |
| Front fork | 20" steel fork. |
| Handlebar | Stem integrated flat bar. |
| Stem | Alloy, foldable with built in mechanism. No tools required. |
| Seatpost | Quick lever adjust. No tools required. |
| Grips | COGHORN® Dungaree stitch grips |
| Pedals | Quick-Flip folding pedals. |
| Saddle | COGHORN® Dungaree stitch saddle |
| Chainwheel | 52T steel chainwheel with 170mm alloy crank arms. Includes double-sided chain guard. |
| Gearing | 14-28T 7-speed freewheel. |
| Brakes | Caliper brake (F). Band brake (R). |
| Fenders | Full coverage steel fender set. |
| Kickstand | Alloy, center stand. |
| Folded size | 27x14x33 in. |
| Packed size | 27x15x33 in. |
| Suggested rider height | Suggested for adults and teens (5'0" to 5'10") |
| Max rider weight | Supports riders up to 220 lbs. |
| Weight | __ lbs |
| Dropout Spacing F/R | 80/135mm |
| Crankarm length | 170mm |
| Length of Bike | 59 inches |
| Chain Ring Teeth | 52 |
| Rear Sprocket Teeth | 14,16,18,20,22,24,28 |
| Gear inches | |
| Minimum saddle height | 29 inches |
| Maximum saddle height | 37 inches |
| Wheelbase | 40 inches |
| Seatpost/handlebar distance | 24 inches |
| Minimum handlebar height | 39 inches |
| Maximum handlebar height | 39 inches |
| Pedal to saddle (min) | 24.5 inches |
| Pedal to saddle (max) | 31.5 inches |
included with the purchase of all COGHORNS.
